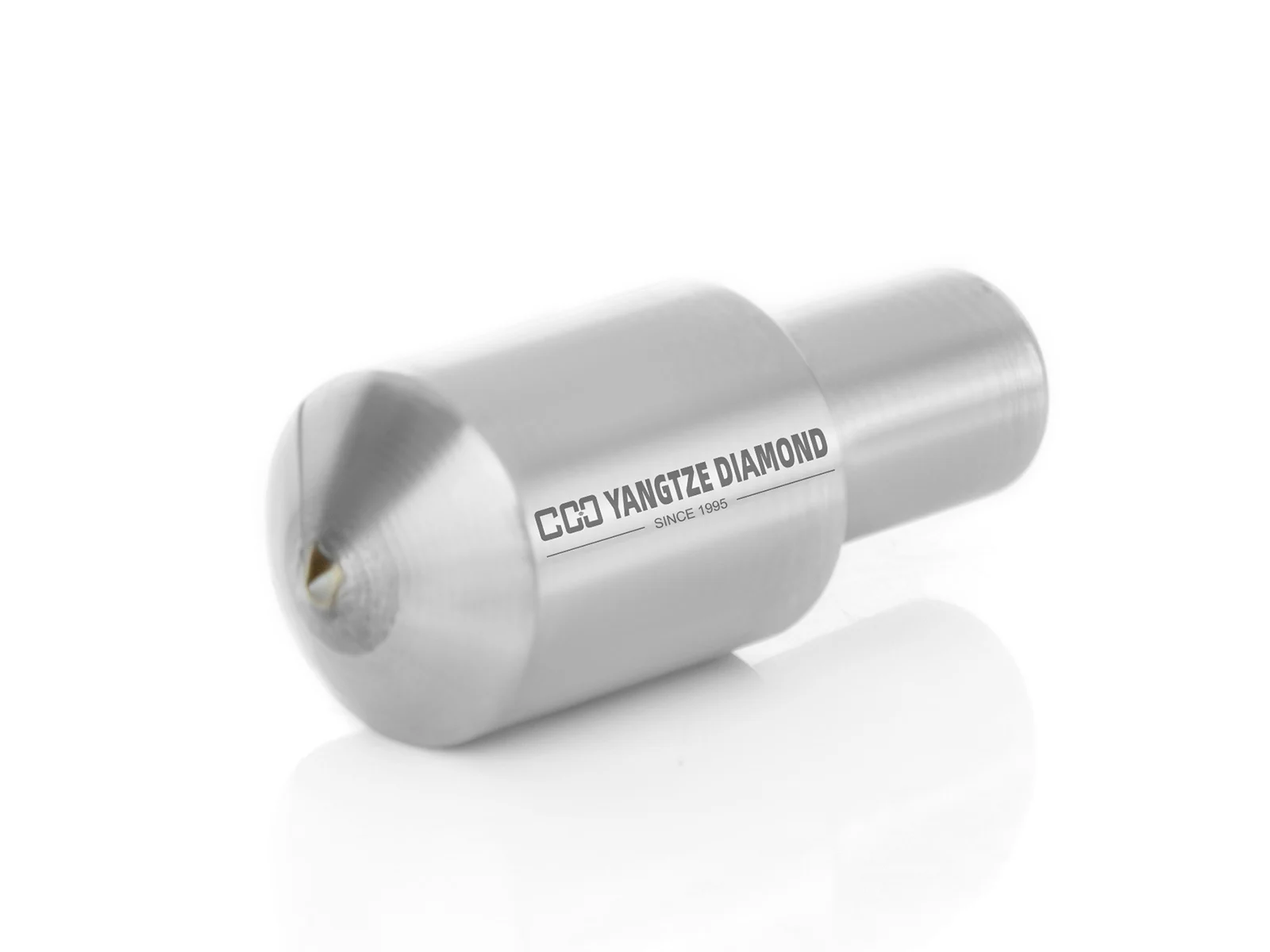

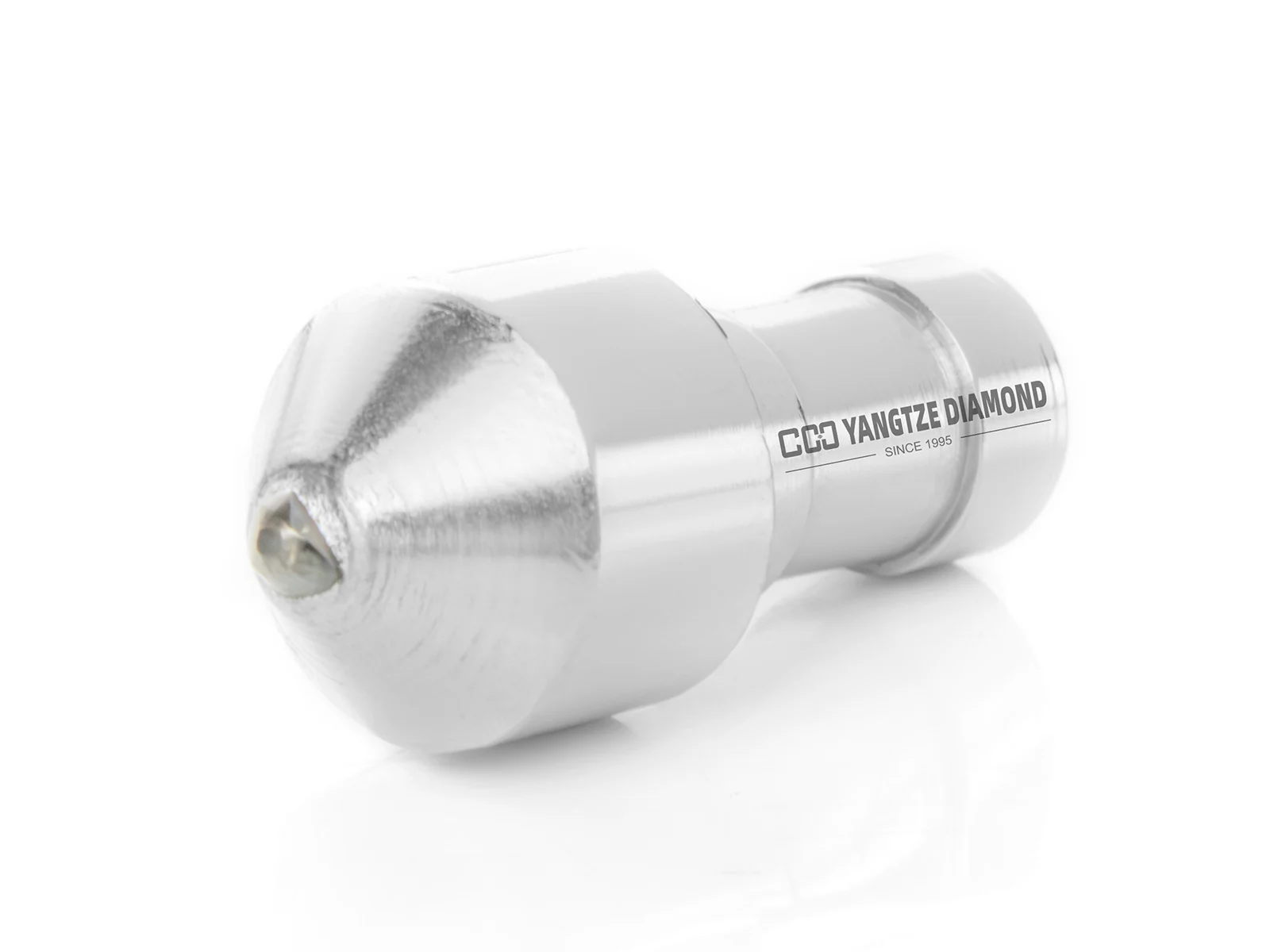

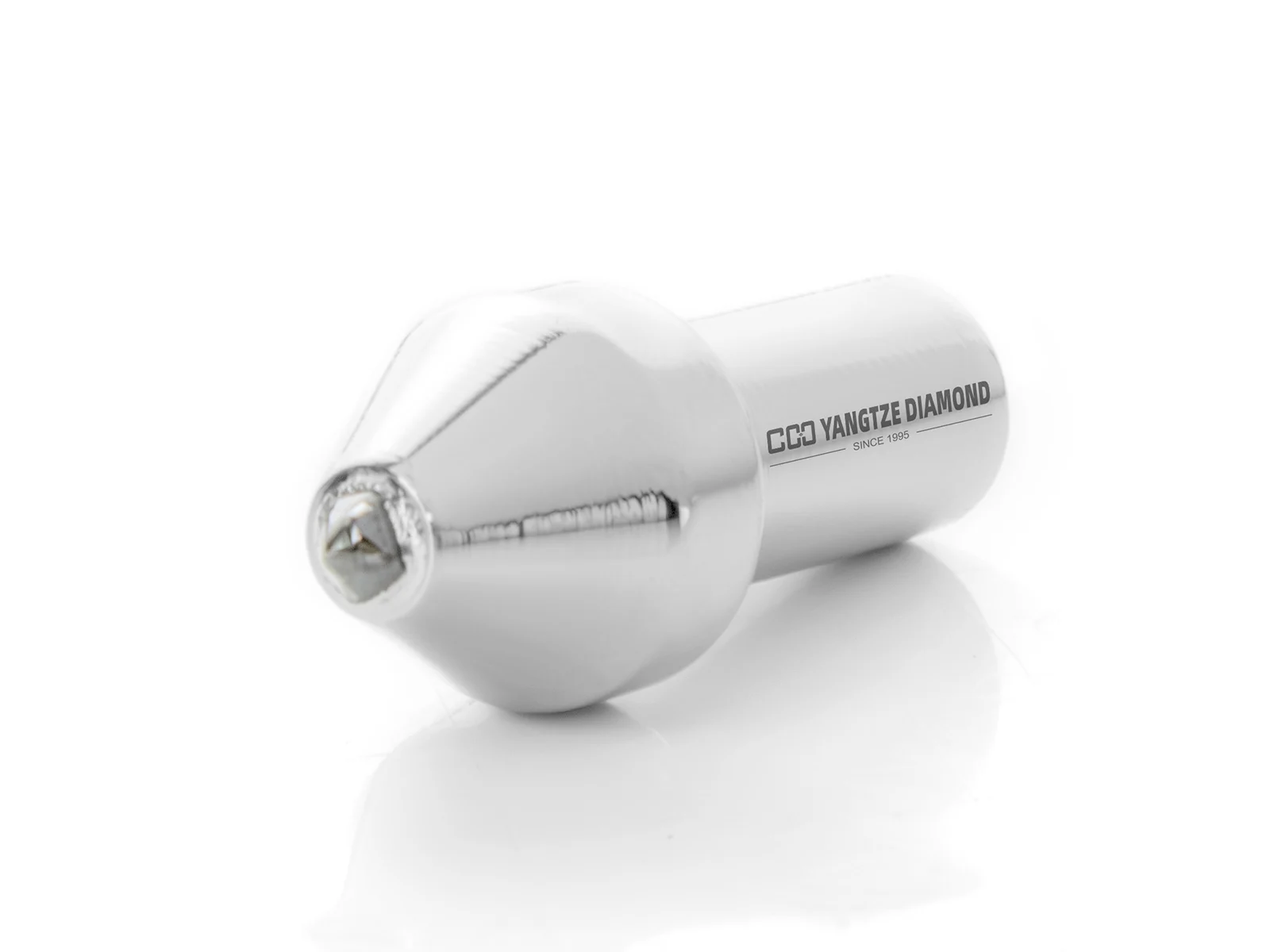

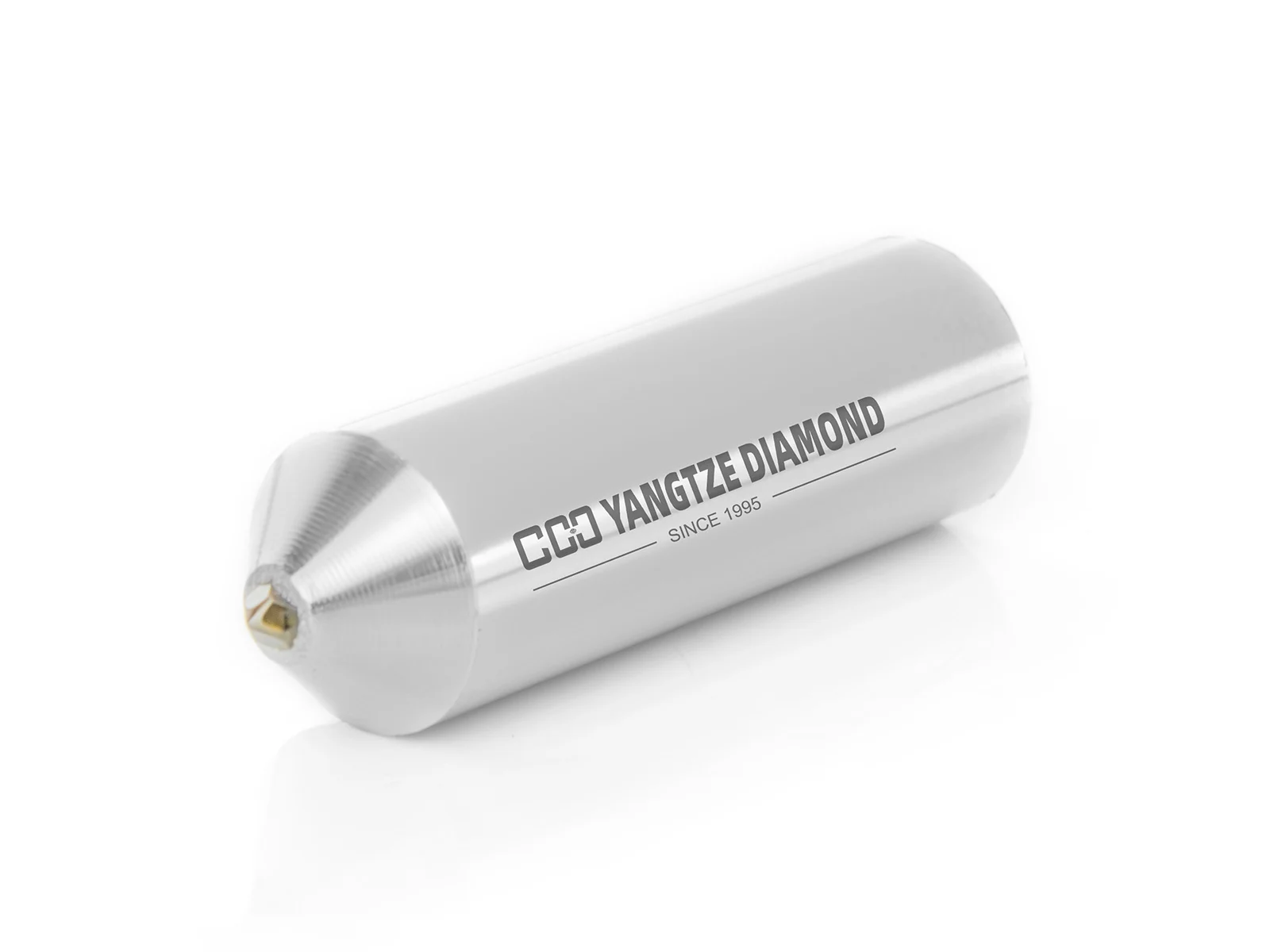

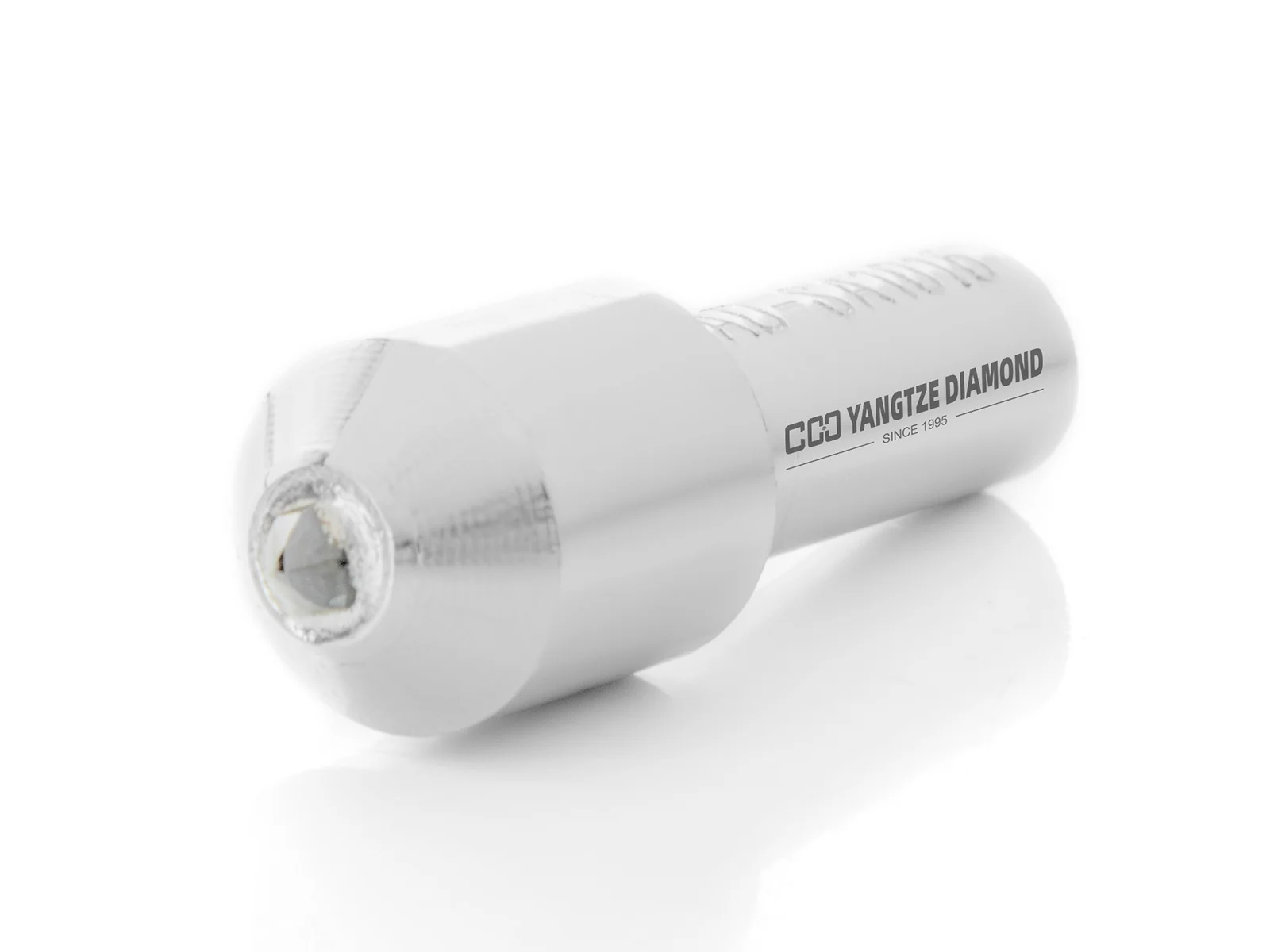

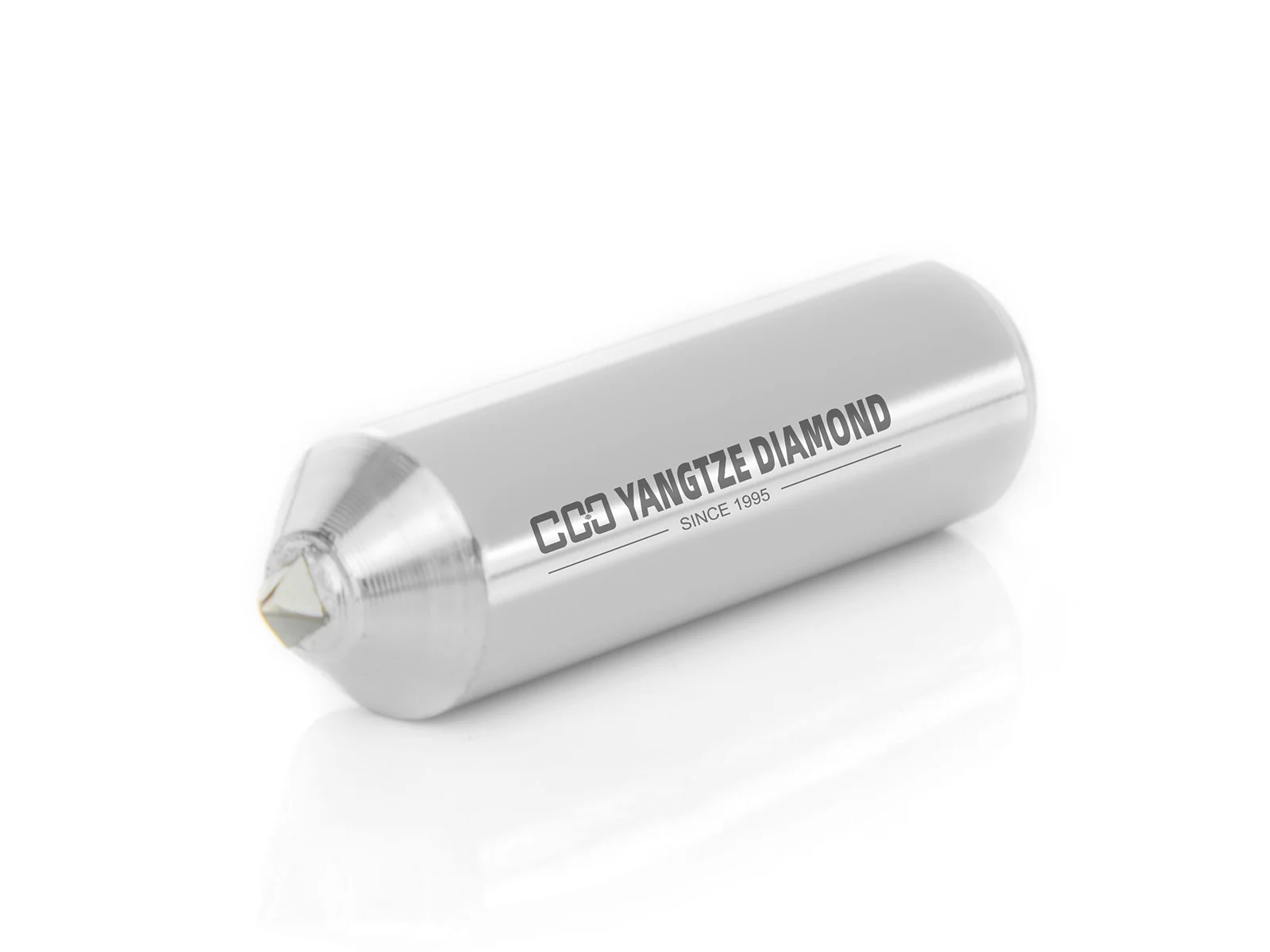

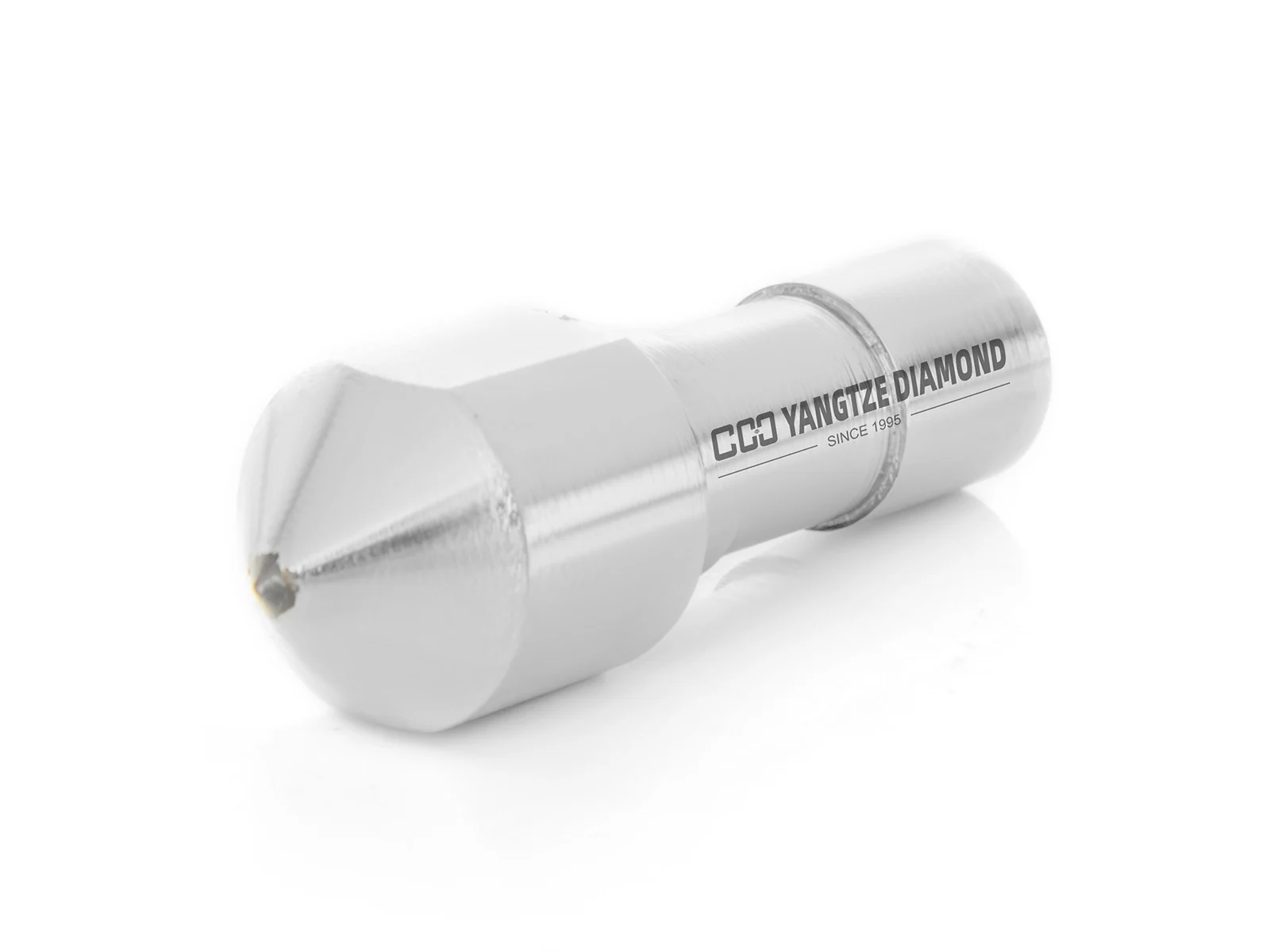

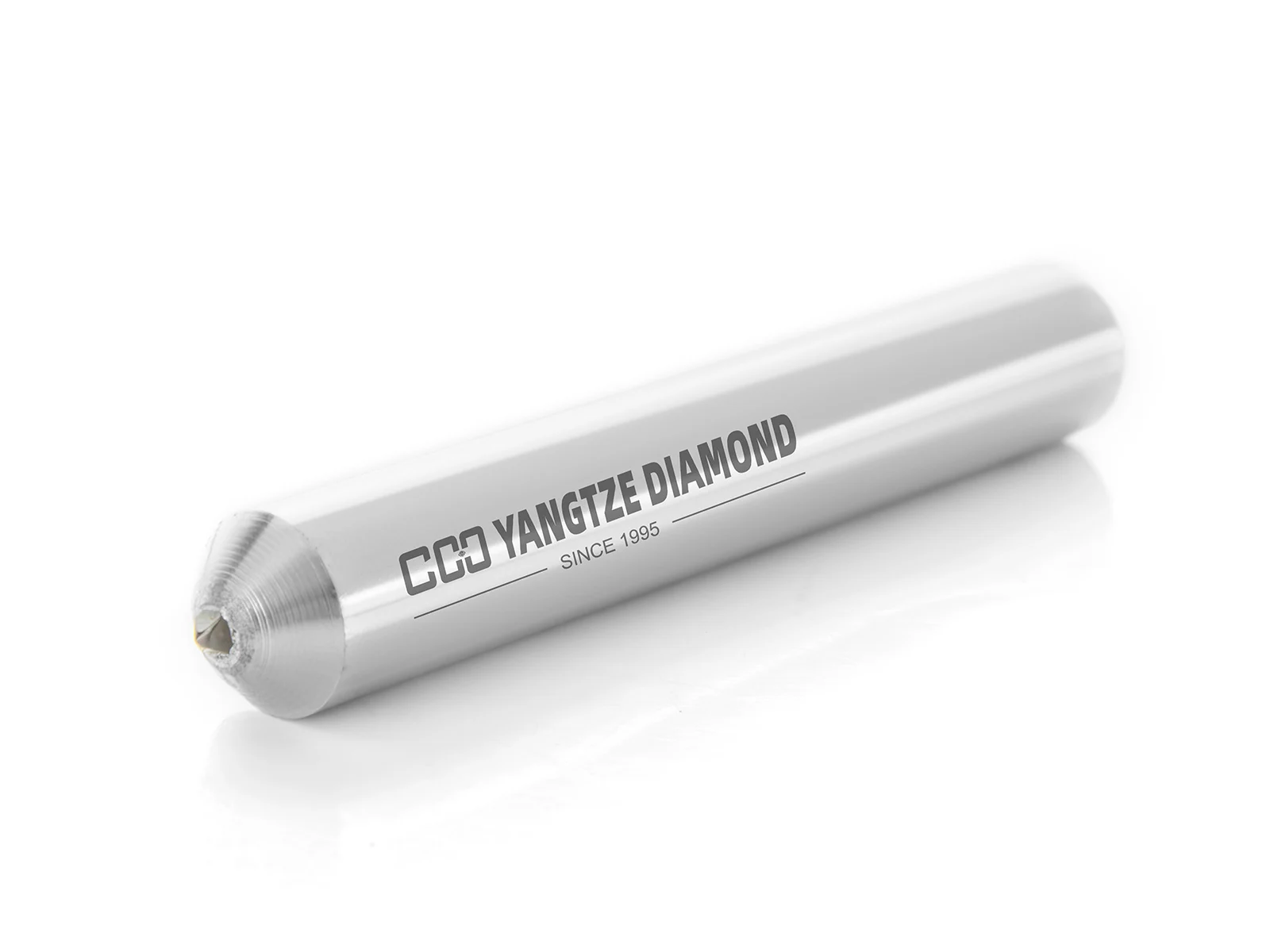

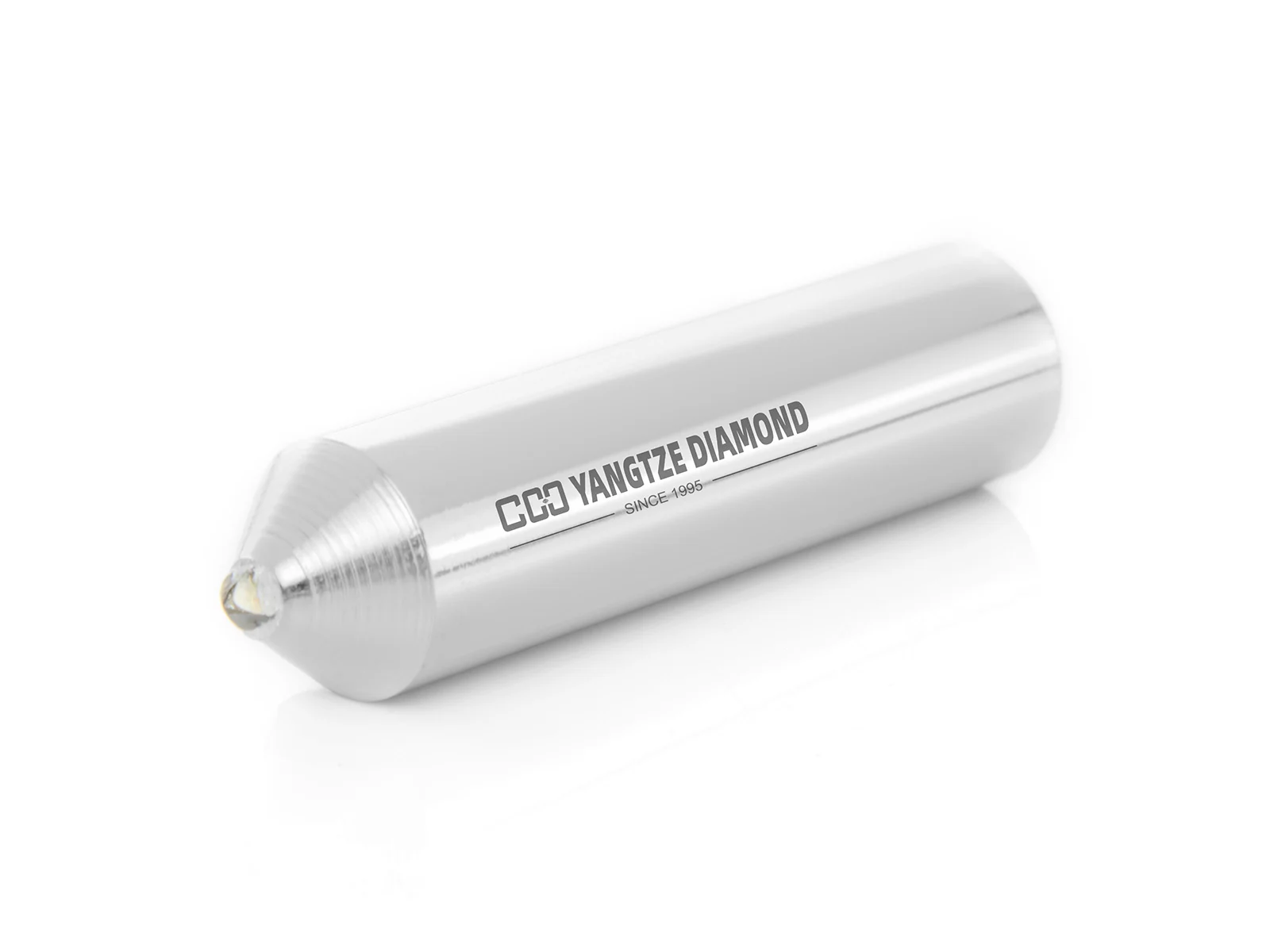

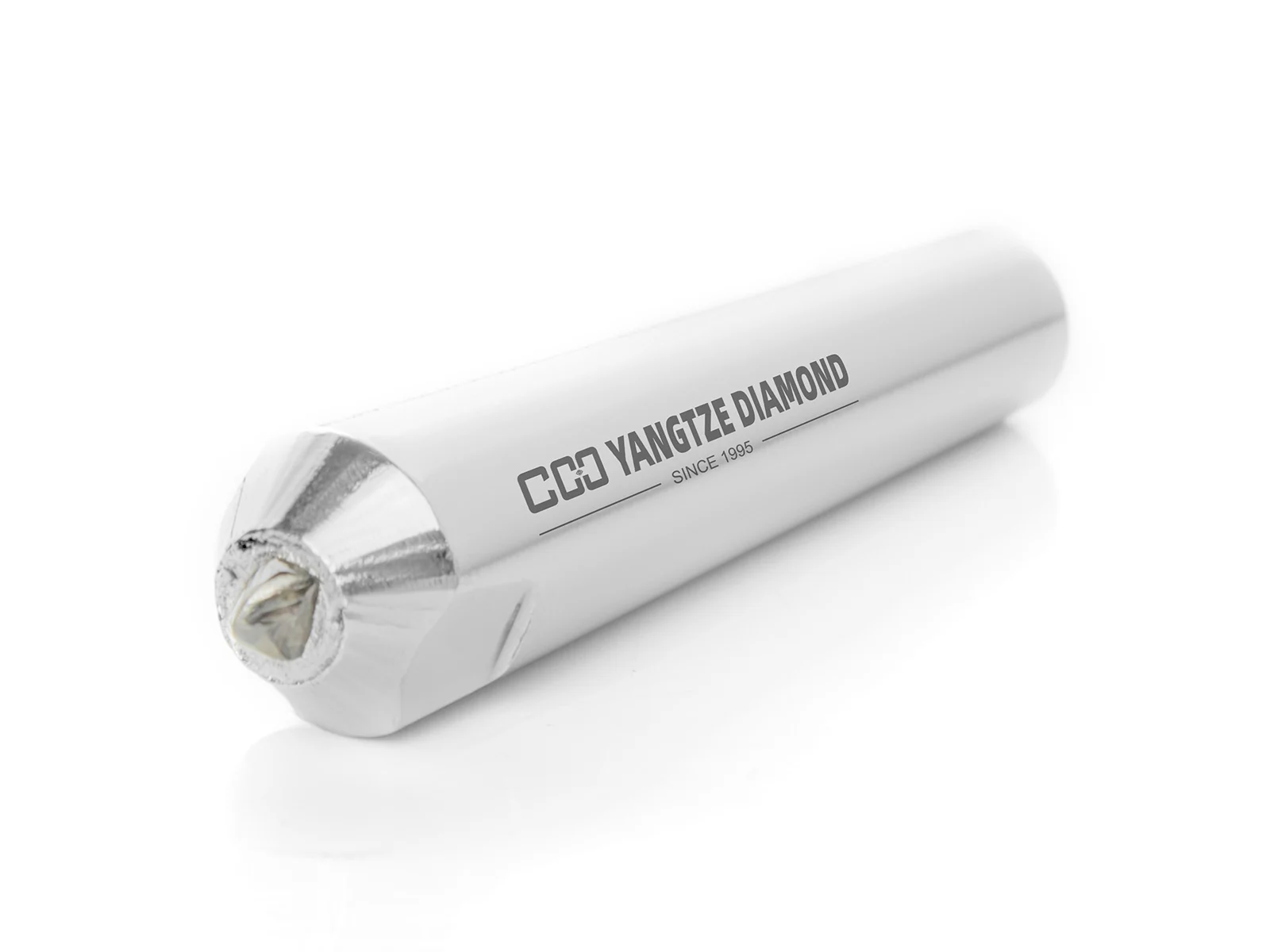

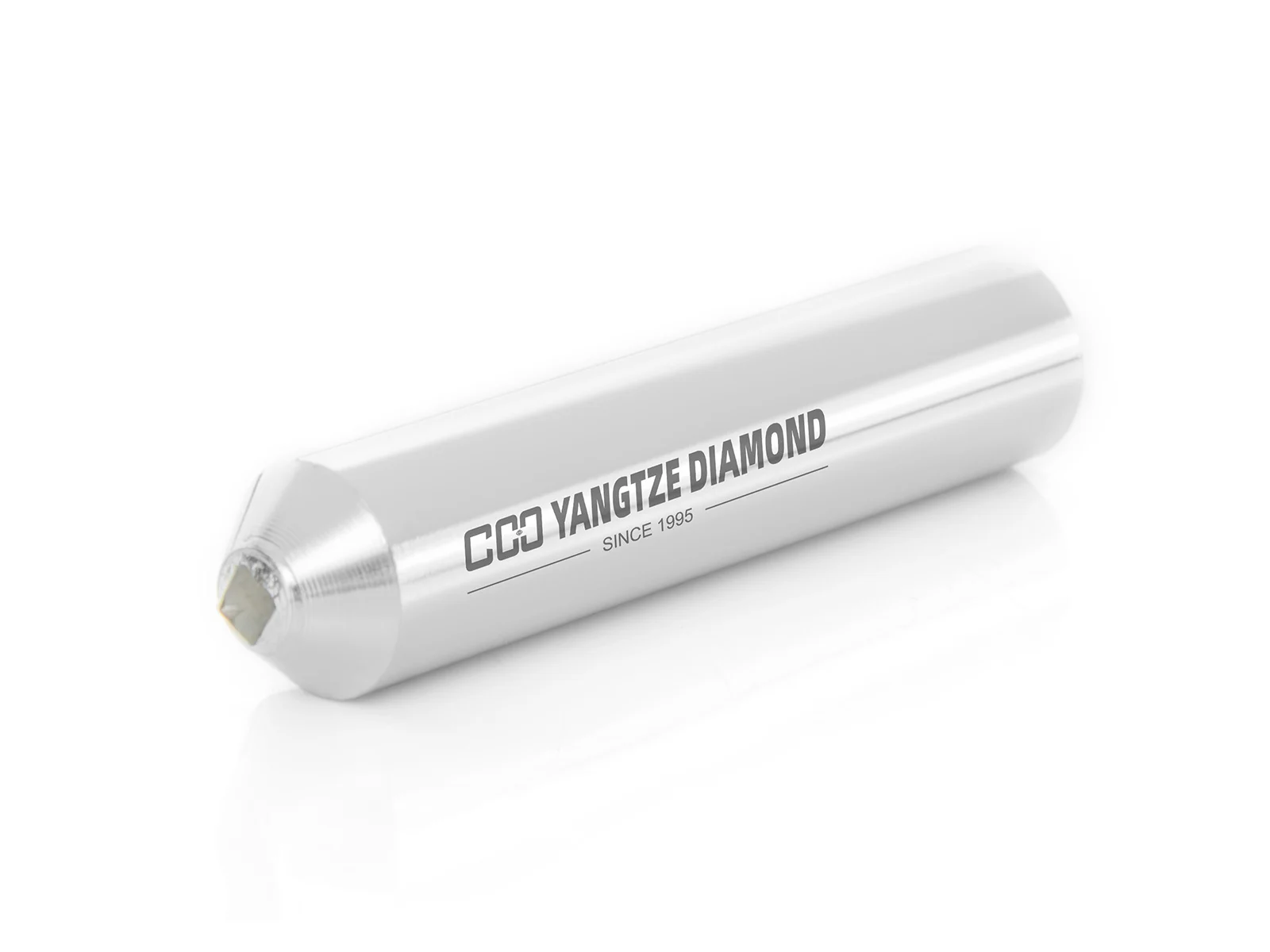

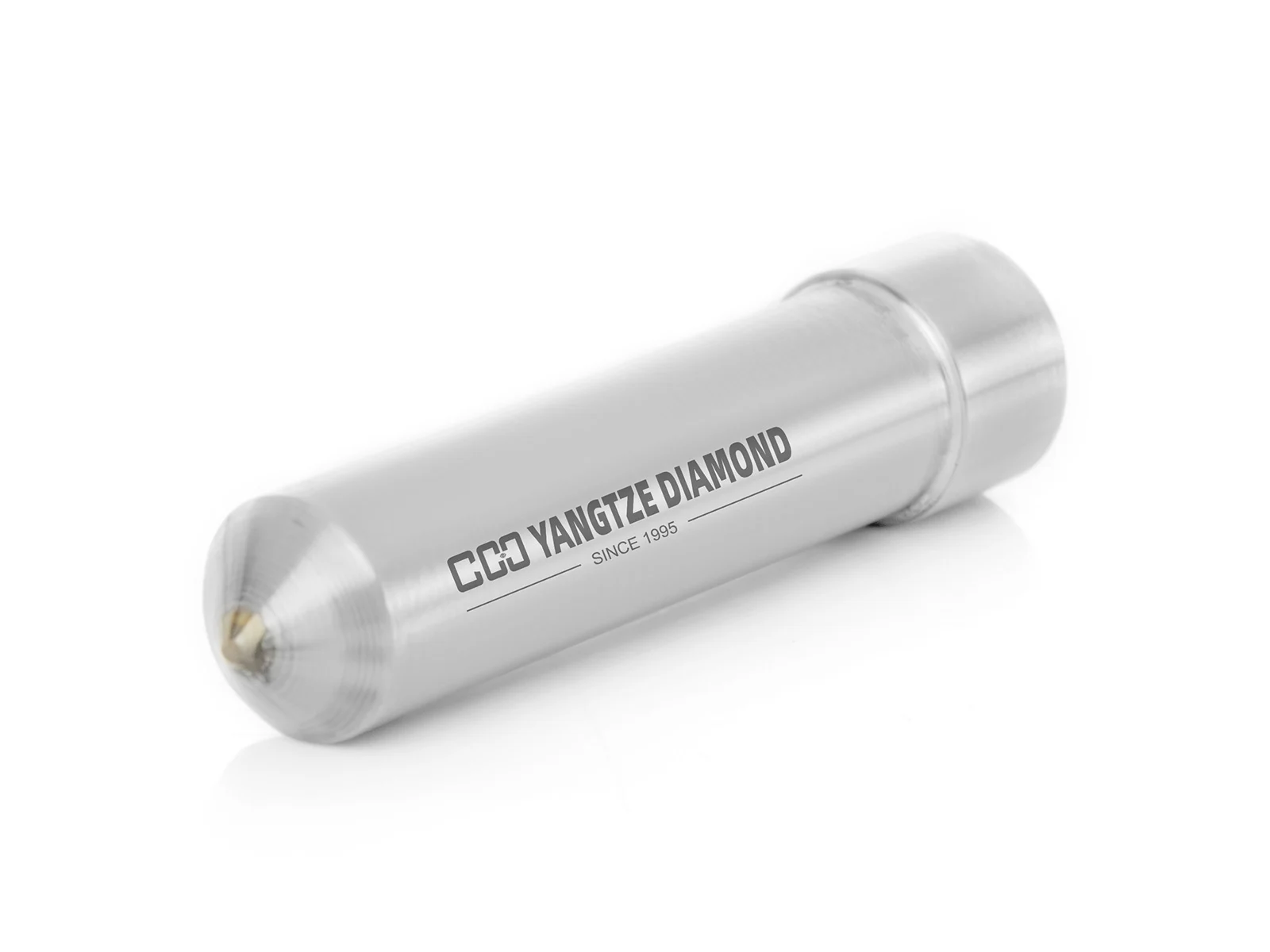

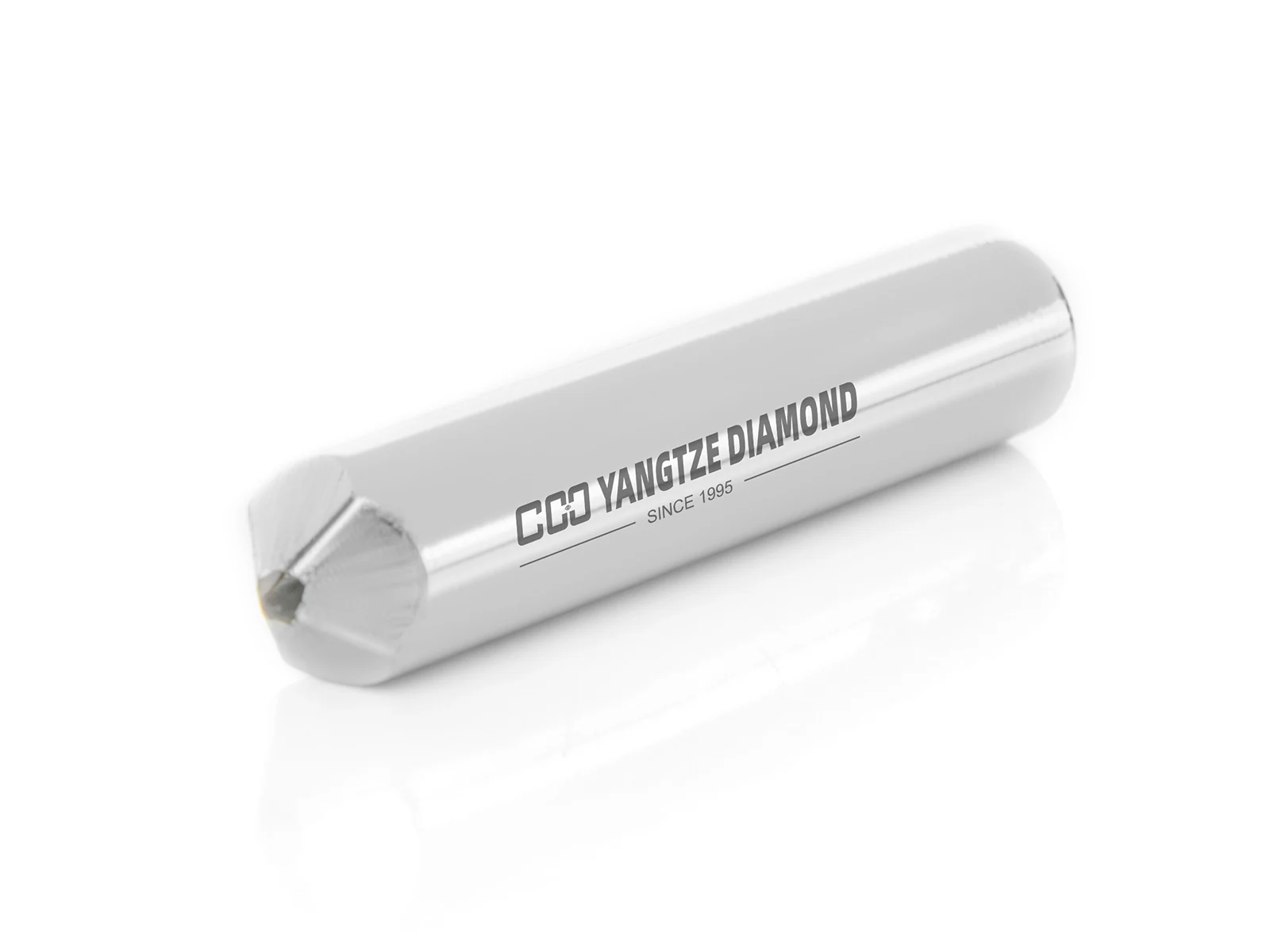

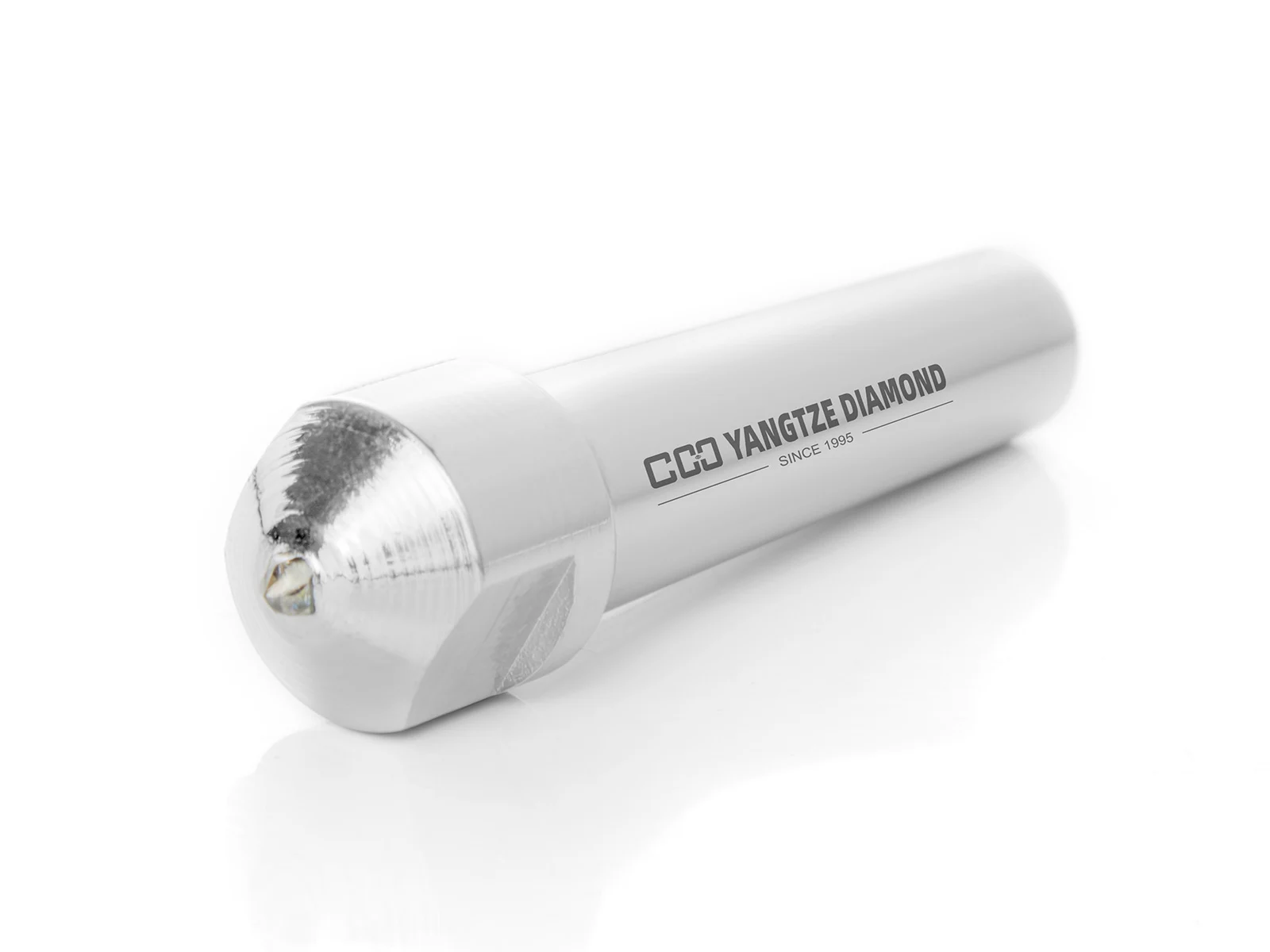

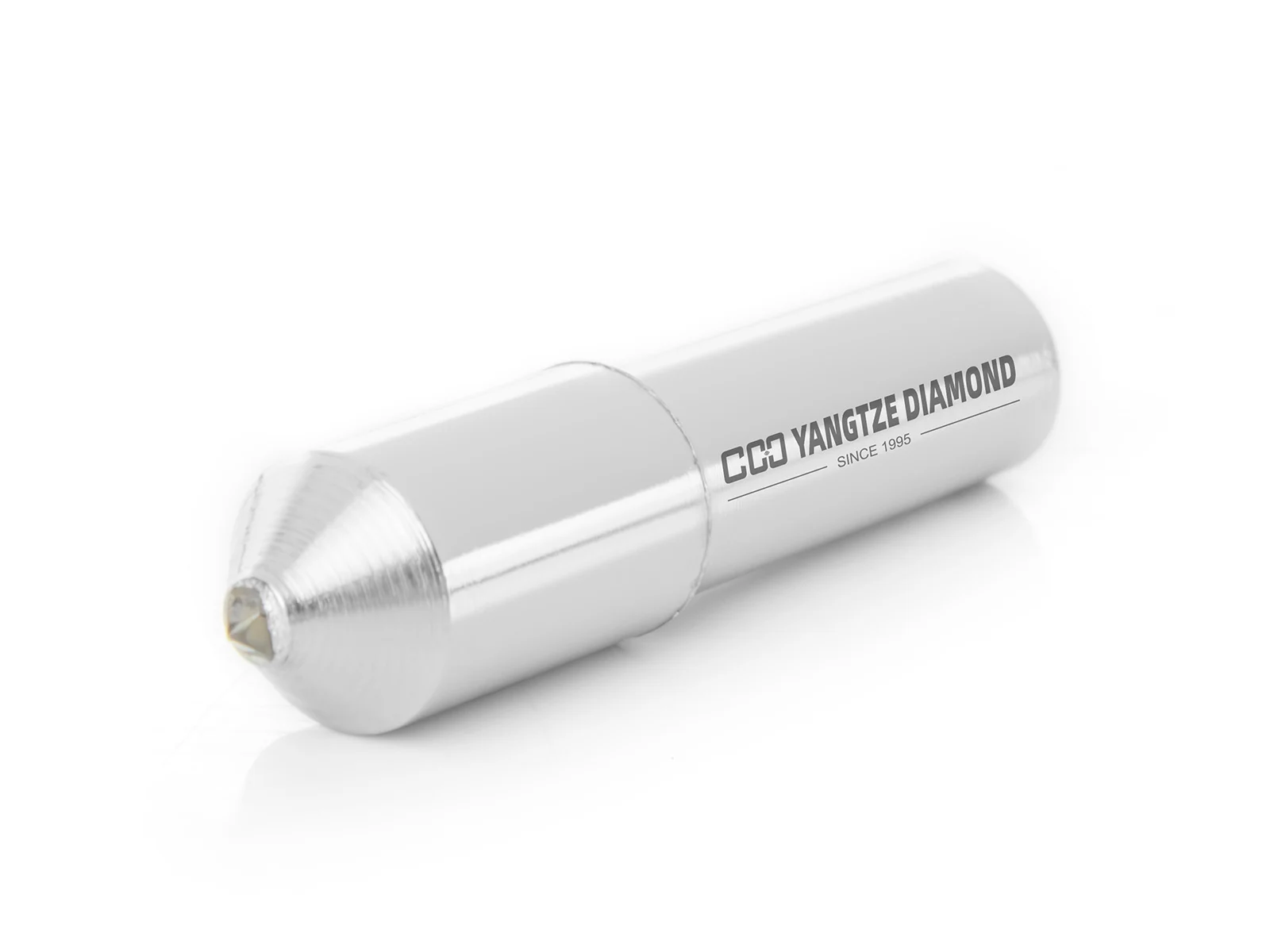

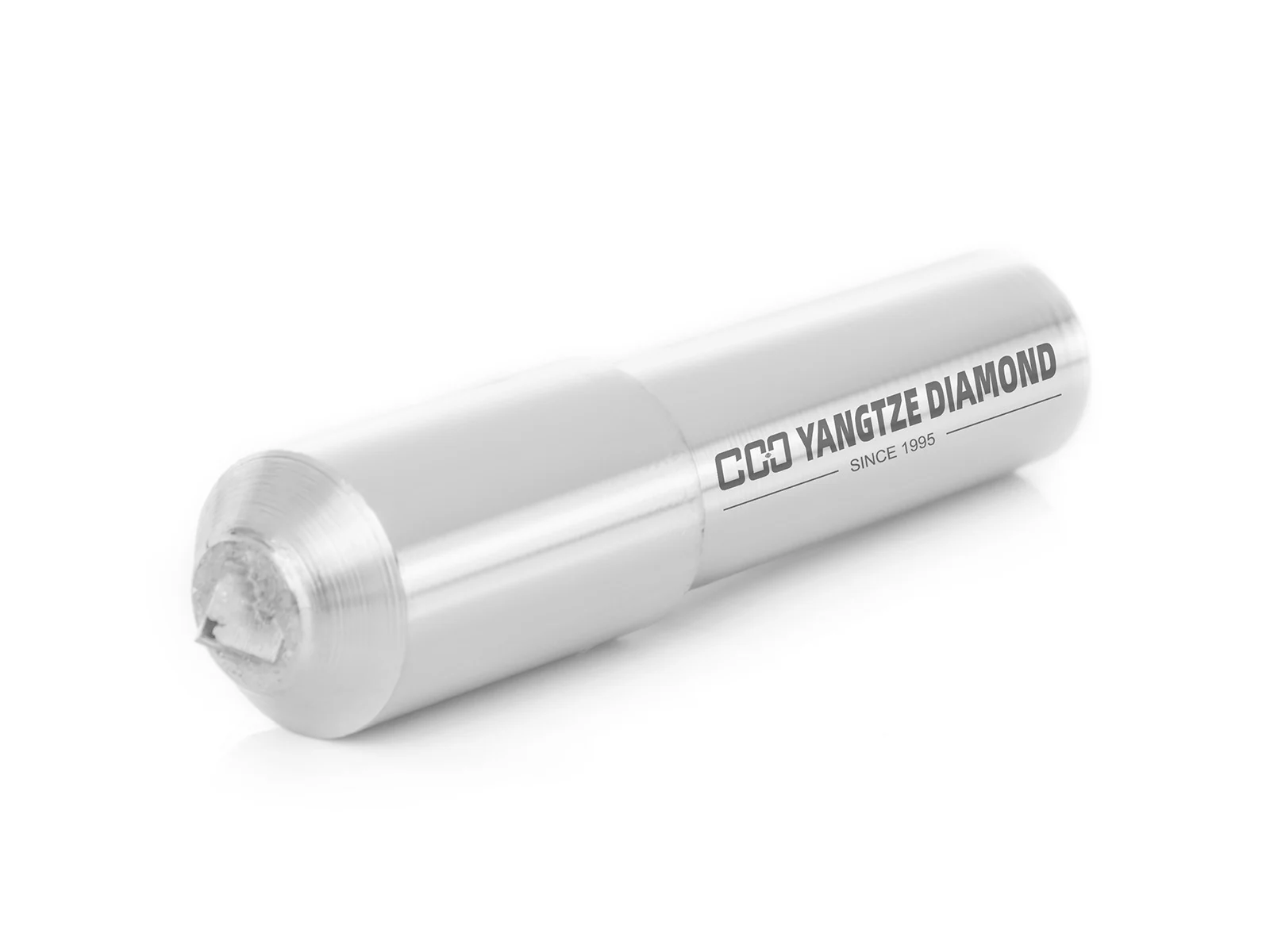

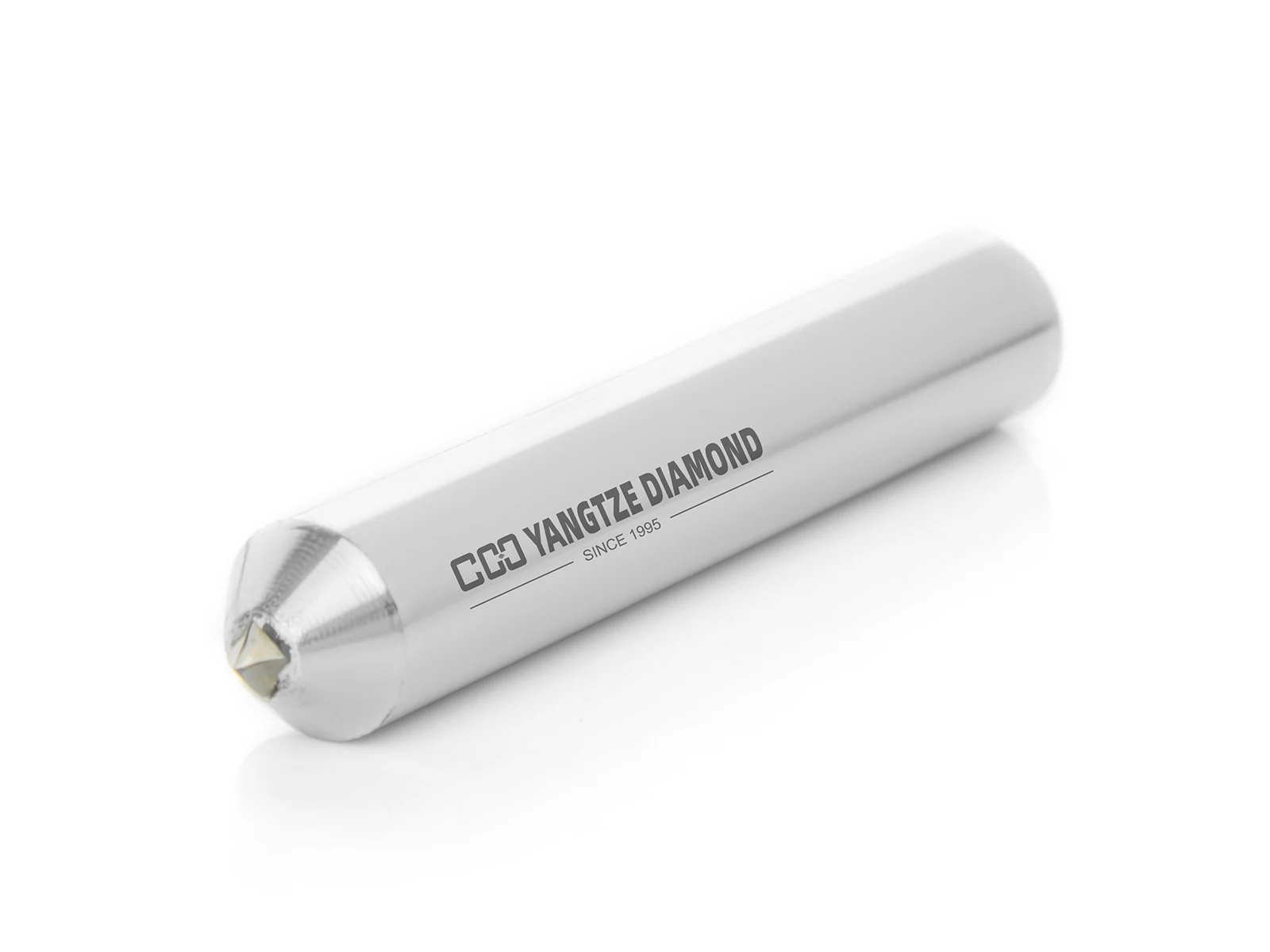

Premium Single Point Diamond Dresser: The Standard for Precision Truing.
Crafted with hand-selected natural diamond dressers and engineered shanks, our tools offer unmatched sharpness and stability. Since 1995, Yangtze Diamond Tools has delivered cost-effective, high-precision dressing solutions for cylindrical, surface, and toolroom grinding.
Technical Selection (Standard Specifications)
Our selection guide helps you match the diamond carat weight to your grinding wheel diameter for optimal tool life and cost-efficiency.
Synthetic diamond single-point diamond dresser
| Column 1 | Column 2 |
|---|---|
| Column 1 Value | Column 2 Value |
Natural diamond single-point diamond dresser
| Column 1 | Column 2 |
|---|---|
| Column 1 Value | Column 2 Value |
Core Advantages
High-Strength Vacuum
Brazing
Our proprietary mounting technology ensures the diamond remains securely fixed under high temperatures and intense grinding forces, preventing premature fallout.
Exceptional Quality Stability
Every tool is subject to rigorous inspection for diamond orientation and shank concentricity, ensuring consistent dressing results across every batch.
Extended Tool Life
We only use octahedron-shaped natural diamond dressers with multiple sharp points. This allows for more frequent rotations and a significantly longer service life compared to lower-grade alternatives.
Professional Resettable
Diamond Tool Service
Maximize your ROI. Our high-quality stones can be reset 2-3 times into new shanks once the point is worn, reducing your long-term tooling costs by up to 60%.

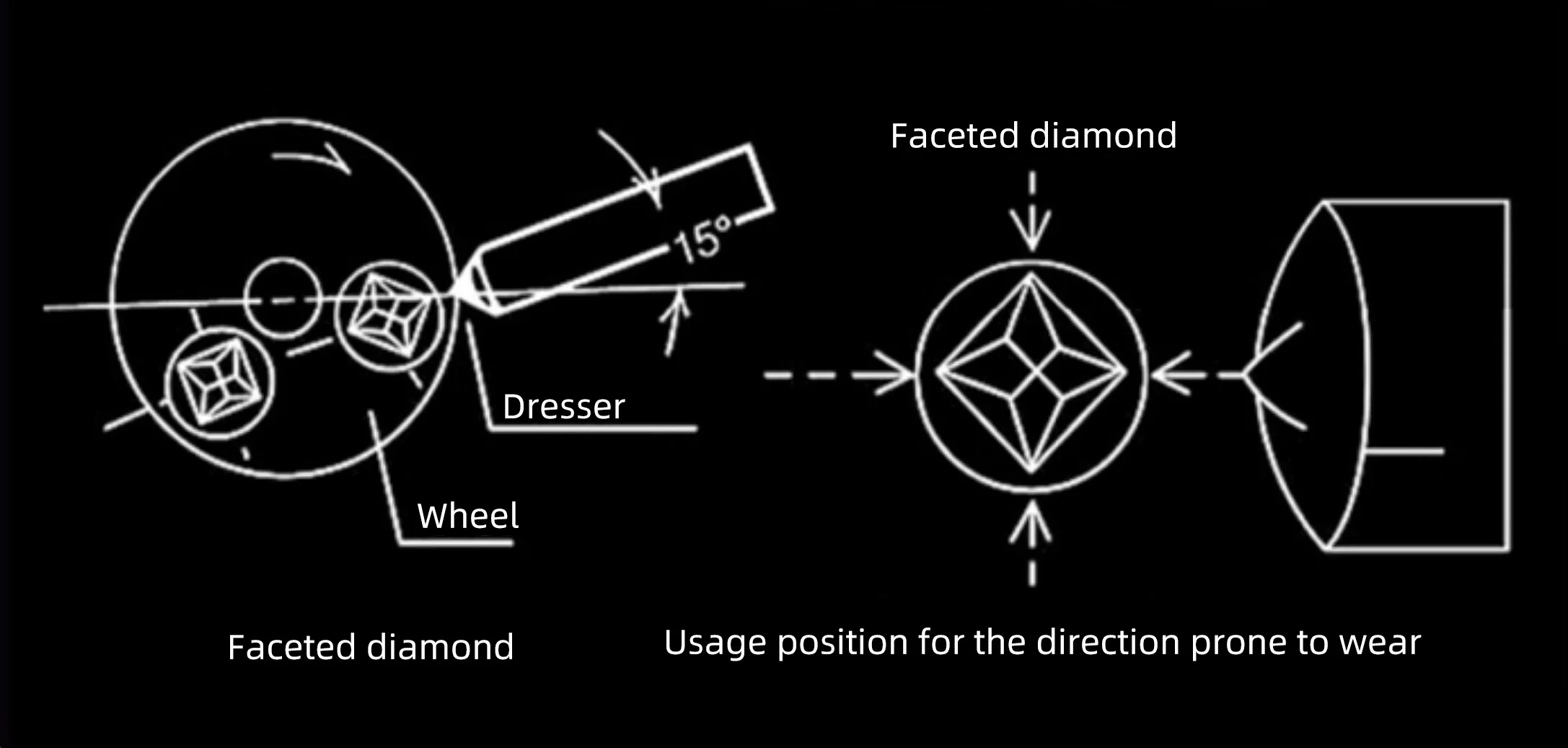

Installation & Operation Guide
To achieve the best surface finish and tool life, follow these industrial best practices:
- Drag Angle Setting: Install the dresser at a $10^$ to $15^$ drag angle pointing in the direction of the wheel rotation. This prevents "digging in" and ensures a self-sharpening effect.
- Centerline Alignment: The diamond point should be positioned at the wheel centerline or slightly below (max 0.8mm), never above.
- Coolant Strategy: Always apply flood coolant before the tool touches the wheel to avoid thermal shock and diamond cracking.
- Regular Rotation: Rotate the tool in its holder by $1/8$ turn (approx. $20^-40^$) daily to expose a new sharp edge and prevent flat spots.
Troubleshooting & FAQ
Industry Applications
Our Single Point Dressers are the preferred choice for high-precision industries globally:
Automotive
Camshaft and crankshaft grinding with tight tolerances.
Bearing Manufacturing
Truing inner and outer raceway grinding wheels.
Aerospace
Precision finishing of turbine components and hydraulic parts.
Tool & Die
Shaping and sharpening carbide and HSS cutting tools.
